Praktica V FB
Praktica IV Praktica IV, 2nd variation Praktica IV, 2nd variation, cut model Praktica IV, 2nd variation Praktica IV, 2nd variation Praktica IV, 2nd variation, microscope Praktica IV B Praktica IV B - brown film reminder Praktica IV B - silver-white frame Praktica IV B - thick white frame Praktica IV M Praktica IV BM Praktica IVF Praktica IV FB Praktica V F Praktica V FB



Praktica V FB
Producer data
Producer VEB Pentacon Dresden Kamera- und Kinowerke responsible constructor Horst Strehle
production period January 1965 to January 1966 no of produced cameras 6,315
Technical properties of the camera
shutter type mechanically controlled horizontal-run rubberised cloth-blind type shutter with twin settings for fast and slow speeds exposure time
(possible settings)
B, 1/2, 1/4, 1/8, 1/30, 1/60, 1/125, 1/250,1/500
view finder fixed eye-level view finder (Pentaprism) with with Fresnel lens and split image range finder as focusing screen, red signal on screen after shutter release mirror instant-return mirror (!)

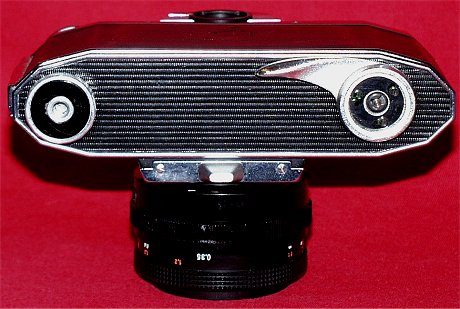

film transport / frame counter knob film advance, loose film take-up spool (plastic), manual frame counter, divided rewind knob as fold-out lever for rewinding, rapid winder at the camera bottom lens mount M42x1
self timer none battery none
metering system exposure meter, uncoupled selenium cell at the pentaprism front, needle next to the rewind knob flash system X- and F-synchronisation with two flash coaxial sockets at the front of the camera body
flash indication none aperture reflection into view finder none
general comments
bulletversion with knobs for the straps
collection data
Hummel-No 148 Kadlubek-No. KWE 1271
body no. 903833 lens no. 10328411

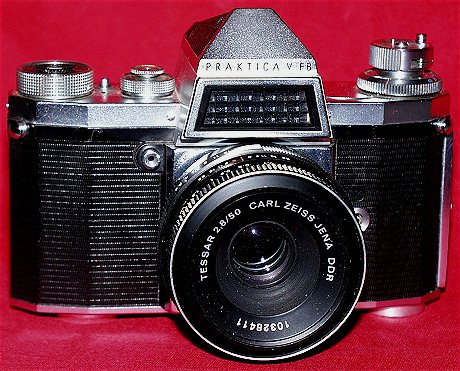

lens type Tessar 2.8/50 Carl Zeiss Jena DDR purchase price 58€
advertising



manual

under construction
