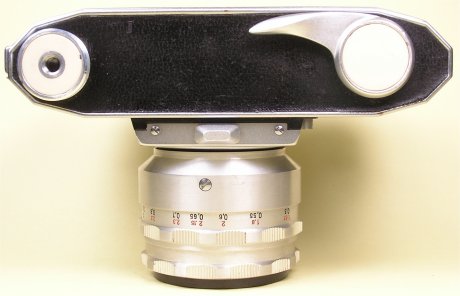

Praktica IV B - silver-white frame
Praktica IV Praktica IV, 2nd variation Praktica IV, 2nd variation, cut model Praktica IV, 2nd variation Praktica IV, 2nd variation Praktica IV, 2nd variation, microscope Praktica IV B Praktica IV B - brown film reminder Praktica IV B - silver-white frame Praktica IV B - thick white frame Praktica IV M Praktica IV BM Praktica IVF Praktica IV FB Praktica V F Praktica V FB



Praktica IVB with thin white frame at exposure meter
Producer data
Producer VEB Kamera- und Kinowerke Dresden; since March 1964 VEB Pentacon Dresden Kamera- und Kinowerke responsible constructor Horst Strehle
production period March 1961 to March 1964 no of produced cameras 23,572
Technical properties of the camera
shutter type mechanically controlled horizontal-run rubberised cloth-blind type shutter with twin settings for fast and slow speeds exposure time
(possible settings)
B, 1/2, 1/5, 1/10, 1/25, 1/50, 1/100, 1/200,1/500
view finder fixed eye-level view finder (Pentaprism) with condenser type ground-glass focusing screen mirror no instant-return mirror
film transport / frame counter knob film advance, loose film take-up spool (plastic), manual frame counter, rewind with special fold-out lever for rewinding, rapid winder at the camera bottom lens mount M42x1
self timer none battery none
metering system expose meter, selenium cell at the pentaprism front, needle next to the rewind knob flash system X- and F-synchronization with two flash coaxial sockets at the front of the camera body
flash indication none aperture reflection into view finder none
general comments
bulletthin white plastic frame as border at the edge of the Selenium cell
bulletwith eyelet for carrying strap
bulletblack film type reminder on rewind bottom
collection data
Hummel-No 142 Kadlubek-No. KWE 1214
body no. 651770 lens no. 6462688
lens type Carl Zeiss Jena Tessar 2.8/50 purchase price 61€
advertising



manual

under construction
