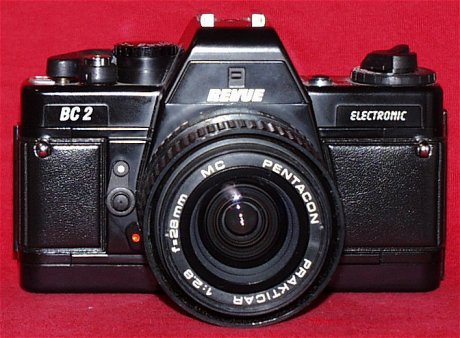

Revue BC 2
Praktica BMS Praktica BMS Pentacon Italia Revue BC 2 Praktica BM



Revue BC 2
Producer data
Producer VEB Pentacon Dresden Betrieb des Kombinates VEB Carl Zeiss Jena responsible constructor Dietmar Tannert
production period 1990 no of produced cameras as a part of Praktica BMS-series (137,561)
Technical properties of the camera
shutter type steplessly working electronically controlled vertical-run metal-blade focal plane shutter exposure time
(possible settings)
B, manually precise speeds of 4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250,1/500, 1/1000; mechanical range 1/60 sec
view finder fixed eye-level view finder (Pentaprism, field of view: 95%) with field lens with triple rangefinder wedge, truncated microprism screen, groundglass field, LEDs- for shutter speed signalling changes their brightness with brightness of the image, LED-indication of all steps of shutter speed, over- and under- exposition and flash ready signal mirror instant-return mirror
film transport / frame counter single stroke 125° wind-on quick-release lever with 25° stand off position, accepts B-motor winder, folding crank rewind knob, auto-zeroing frame counter lens mount Praktica-B-mount with EDC (electronic diaphragm control)
self timer mechanically, approx. 8 sec delay battery VARTA V28 PX (4xLR44)
metering system TTL-metering (12 to 3200 ASA) using electronic diaphragm control (EDC) for measurement with open aperture using a Silicon photo- element, auto exposure compensation with +/- two shutter speeds in half steps, automatic exposure system with memory key, battery check facilities flash system X-synchronisation (1/60), accessory shoe at the top of the pentaprism
flash indication yes aperture reflection into view finder yes
general comments
collection data
Hummel-No 233 Kadlubek-No. REV 0560
body no. 439603 lens no. 1001
lens type Pentacon Prakticar 1:2.8 F=28mm MC purchase price 90€
advertising



manual

under construction
