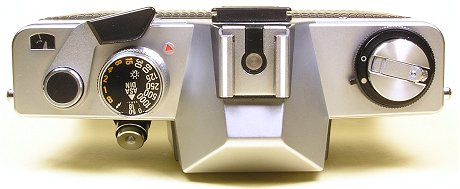

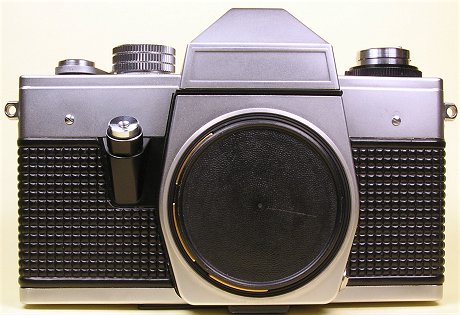

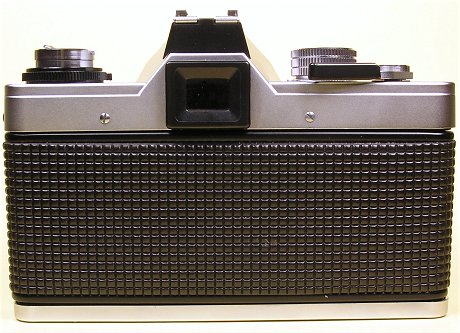

Praktica PLC 3 noname version
Producer data
Producer Kombinat VEB Pentacon Dresden responsible constructor Rolf Noack
production period April 1978 to January 1983 no of produced cameras as a part of PLC3 series (129,958)
Technical properties of the camera
shutter type mechanically controlled vertical-moving metal-blade focal plane shutter exposure time
(possible settings)
B, 1/1, 1/2, 1/4, 1/8, 1/15 1/30, 1/60, 1/125, 1/250,1/500, 1/1000
view finder fixed eye-level view finder (Pentaprism) with Fresnel lens with microprism and split-image range finder as focusing screen, built-in shutter speed meter with (+/-)-symbol mirror instant-return mirror
film transport / frame counter quick-release lever, Pentacon Loading-System, fold-out rewind crank, auto-zeroing frame counter lens mount M42x1
self timer mechanically, approx. 10 sec battery VARTA V21 PX
metering system TTL-metering using electronic aperture simulation for measurement with open aperture (using electric lenses) or stopped-down metering with non-electric lenses flash system X-synchronisation (1/125), accessory shoe at the top of the pentaprism, with coaxial flash socket at the camera body for dual flash systems
flash indication none aperture reflection into view finder none
general comments
bulletversion without engraving of the camera type as well as without "Praktica" engraving at the front of the pentaprism
collection data
Hummel-No 203 Kadlubek-No. none
body no. 494184 lens no.
lens type   purchase price 700€
advertising



manual

under construction
